APsystems Microinverter Not Reporting Data: Fix NC

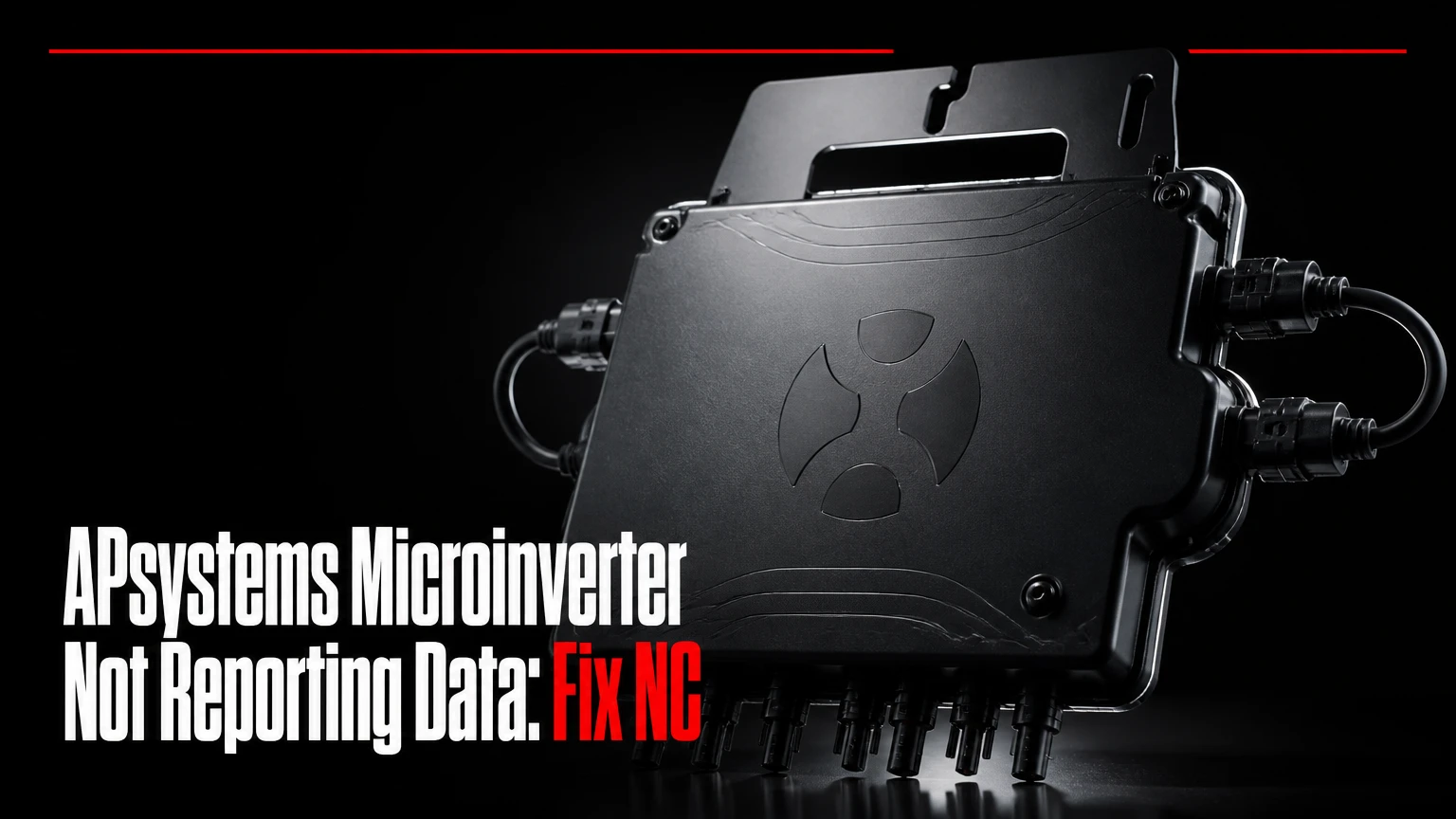

apsystems microinverter not reporting data

APsystems microinverter not reporting data usually means the Energy Communication Unit, or ECU, is not receiving or uploading panel-level information. The solar array may still produce AC power, so first separate a monitoring outage from a generation outage by checking the ECU, solar breaker, utility meter, and inverter status before arranging roof work.

Key Facts at a Glance

  • “Not Reporting” or “NC” identifies a communication or data problem, not proof that a microinverter has stopped producing power.
  • The normal data path is microinverter to ECU, ECU to router or internet, then APsystems EMA cloud and app.
  • A whole-array outage usually points toward ECU power, the solar AC circuit, network access, or cloud communication.
  • One offline unit usually indicates a local microinverter, cable, panel, RF, mapping, or hardware issue.
  • Homeowners should not disconnect rooftop microinverters or open energized equipment to restore monitoring.
  • APsystems ECU behavior, LED meanings, supported communication methods, and configuration limits vary by model and firmware.

What Does “APsystems Microinverter Not Reporting Data” Mean?

An APsystems microinverter marked “Not Reporting” is not successfully delivering status data to the monitoring system. The failure can occur between the roof and ECU, between the ECU and home network, or between the ECU and APsystems EMA cloud.

The distinction matters because monitoring data and electricity use different paths after conversion. A microinverter can continue converting panel DC into grid-synchronized AC while its Zigbee or power-line communication message never reaches the ECU. Conversely, a tripped solar breaker can stop both production and reporting.

The percentage of cases that continue producing cannot be safely generalized as “over 80%.” APsystems, installers, array size, failure duration, weather, and the number of affected devices change the outcome. Treat the message as an observation that needs testing, not as a production diagnosis.

The APsystems Data Path

Stage Component Function Typical failure symptom
1 Solar panel Supplies variable DC voltage and current Low or absent production
2 APsystems microinverter Converts panel DC to grid AC One or more panels stop producing
3 ECU gateway Collects inverter telemetry Many units show NC
4 Router or Ethernet link Sends ECU data online ECU network indicator changes
5 EMA cloud and app Stores and displays records Delayed or missing app data

The ECU is the key boundary. If local ECU data shows recent inverter messages but the app is stale, the roof communication network may be healthy and the internet or cloud path may be failing. If the ECU sees no inverters, the fault is closer to the array, ECU radio, wiring, configuration, or power supply.

How Does APsystems Monitoring Work?

APsystems systems commonly use a short-range wireless communication network between microinverters and an ECU, while some older or region-specific installations use power-line communication or another approved architecture. The exact protocol depends on the ECU, microinverter generation, installation design, and firmware.

The simplified path is:

Microinverters → Zigbee or approved local link → ECU → Wi-Fi or Ethernet → EMA cloud → EMA app

The ECU does not create solar energy and does not replace the AC safety equipment. It gathers operating values such as power, voltage, frequency, and device status, then forwards those records. A powered ECU can therefore appear normal while individual inverters remain unreachable.

APsystems product pages and manuals should control model-specific decisions. A generic internet guide cannot reliably assign one LED pattern, range, update interval, or maximum device count to every ECU generation.

What Is the Difference Between Monitoring and Production?

Monitoring reports are digital records. Production is electrical energy delivered by the inverter system. These functions are related but not identical.

Observation Likely interpretation Safe next check Urgency
App stale, utility meter shows solar export Monitoring path likely failed Check ECU and router Low to moderate
All units NC, solar breaker tripped AC supply interruption Reset only if safe and permitted Moderate
One unit NC, other units report Local device or communication issue Record serial number and pattern Moderate
App reports zero, meter shows no daytime export Possible production outage Contact installer after basic checks High
ECU has no power indicators Gateway power problem Check outlet and dedicated circuit Moderate

A utility meter is useful evidence, but it may display net consumption rather than instantaneous solar generation. A home energy monitor, inverter AC measurement, or installer diagnostic report provides stronger confirmation.

How Do You Fix APsystems Microinverter Not Reporting Data?

Fix the problem from the data center outward: verify the app and internet, inspect ECU power, reboot the ECU once, check the solar AC supply, then have an installer test roof communication and production. A homeowner can usually complete the first four checks in 10-20 minutes without touching rooftop equipment.

Repeated resets rarely repair a damaged microinverter, failed ECU, incorrect UID, or blocked radio path. Record the time, affected devices, ECU lights, weather, and breaker condition before changing anything, because that evidence helps an installer isolate an intermittent fault.

Before You Start

Item Typical value Homeowner action Limitation
Basic time 10-20 minutes App, router, ECU and panel checks Does not include roof testing
Difficulty Low No tools for visual checks Electrical work may require a licensed person
Required tools Smartphone, flashlight Photograph lights and labels Do not remove covers
Information needed ECU model, inverter UIDs Read front label or EMA account Do not delete devices
Weather condition Daylight preferred Compare reports with sun conditions Clouds can reduce output

Step 1: Confirm the Scope of the Outage

Open the APsystems EMA app and determine whether every microinverter is offline or only specific units are missing. Note whether the last successful update occurred during daylight, overnight, or after a weather event.

A whole-array status points first toward the ECU, network, solar AC circuit, or cloud service. A few missing devices point toward RF obstruction, UID mapping, local AC wiring, a microinverter, or a panel-level issue.

Success checkpoint: You have a list of affected inverter serial numbers and the last known reporting time.

Common mistake: Treating an overnight NC status as a daytime failure. Some systems show no meaningful production during darkness, so compare the message with daylight records.

Step 2: Check the ECU and Internet Connection

Confirm that the ECU is plugged directly into its intended outlet and that the outlet has power. Check the router by opening another website, then inspect the ECU indicators using the manual for the exact model.

A network indicator that is off, red, or disconnected can identify the home-network side of the fault, but LED colors are not universal across ECU generations. A normal network light also does not prove that the ECU is receiving microinverter packets.

Success checkpoint: The router is online, the ECU has power, and the ECU network state matches its manual.

Common mistake: Moving the ECU beside the router without considering the roof-to-ECU radio path. A better internet connection can produce worse microinverter communication if the new location is behind metal or farther from the array.

Step 3: Reboot the ECU Once

Disconnect ECU power using the normal plug or approved circuit isolation method, wait at least 60 seconds, and restore power. Allow several minutes for startup, network association, and local inverter discovery before judging the result.

Some installations may need longer to repopulate the EMA app. A five-minute display interval is a common operational expectation, not a universal hardcoded rule for every model or firmware release.

Success checkpoint: The ECU indicators return to their documented operating state and new timestamps begin appearing in EMA.

Common mistake: Power-cycling the ECU repeatedly within seconds. Rapid cycling can interrupt startup and creates no useful diagnostic evidence.

Step 4: Inspect the Solar AC Breaker

Look for a breaker labeled Solar PV, PV, inverter, or microinverters in the main panel or dedicated PV subpanel. If the breaker is visibly tripped and local electrical rules permit a homeowner reset, move it fully to OFF, then to ON once. Do not keep resetting a breaker that trips again.

A tripped AC circuit can explain simultaneous loss of production and reporting. It can also indicate a fault that needs professional testing, including insulation, ground-fault, overcurrent, or equipment problems.

Success checkpoint: The breaker remains on, no burning smell or heat is present, and the app begins receiving data after the normal delay.

Common mistake: Resetting a breaker while ignoring a second disconnect, rapid shutdown control, or service-panel fault. Follow the system labels and installer documentation.

Step 5: Check Configuration Without Deleting Devices

For a new installation, replacement ECU, or modified array, the installer should verify that each microinverter UID matches the physical array map. One incorrect digit can associate a device with the wrong position or prevent expected reporting.

Homeowners should not delete offline inverters, recreate the system, or edit the array map as a first response. Historical records, warranty documentation, and commissioning data may depend on the original configuration.

Success checkpoint: The installer confirms the ECU system list, UID values, phase assignment, and panel map against the commissioning file.

Common mistake: Assuming a missing panel icon means the panel is electrically disconnected. A mapping error can look identical in the app while the hardware continues to operate.

Which ECU Light Should You Check?

The ECU power state comes first, the network state comes second, and the local microinverter communication state comes third. Exact labels and colors differ by ECU model, so the installation manual takes priority over generalized LED charts.

ECU observation What it can indicate What it cannot prove Recommended action
No power light Outlet, adapter, fuse, or ECU fault That the array is offline Test outlet safely, then call installer
Power normal, network abnormal Router, password, cable, or internet issue That roof communication failed Restore network path
Network normal, units absent RF, PLC, mapping, ECU radio, or AC issue That panels stopped producing Request local ECU diagnostic
Intermittent communication Distance, interference, weather, firmware, or failing hardware One single root cause Record timestamps and conditions

Do not infer a specific “fast green,” “slow red,” or “solid red” meaning without identifying the microinverter model. APsystems LED conventions vary, and viewing an LED beneath a panel does not replace electrical testing.

Why Is Only One Microinverter Offline?

One offline APsystems microinverter usually indicates a localized problem rather than an internet outage. Common causes include a UID mapping error, a failed microinverter, a panel or DC connector issue, local AC wiring, communication shadowing, or an individual device firmware problem.

Compare the affected unit with neighboring devices installed on the same roof section. Ask the installer for the unit’s AC voltage, DC input behavior, fault log, communication signal quality, and replacement history.

Partial-Array Diagnostic Matrix

Pattern More probable causes Evidence to collect Professional test
One unit offline continuously Hardware, UID, local cable Serial number, position, start date AC, DC and ECU diagnostic test
Two adjacent units offline Cable branch, RF shadow, shared circuit Roof map and adjacency Branch wiring and signal test
Same units fail during rain Water ingress, insulation issue, RF attenuation Weather timestamps Insulation and enclosure inspection
Units return after reboot Firmware, temporary RF, ECU session Reboot time and recovery delay Firmware and event-log review
Units fail after panel replacement UID or commissioning mismatch New and old serials Recommissioning and map validation

A single missing unit should not trigger an ECU replacement. Conversely, replacing one microinverter without checking the UID and branch wiring can leave the original problem unresolved.

Can Weather or Building Materials Stop Reporting?

Weather can reduce solar output and temporarily weaken communication, but clear-weather recurrence is more diagnostic than one storm-related event. Metal roofing, foil-backed insulation, concrete, stucco, equipment cabinets, and a relocated ECU can attenuate or reflect 2.4 GHz signals.

Zigbee is not automatically a reliable mesh across every roof. The practical path depends on radio placement, device density, antenna orientation, obstructions, and the specific ECU design. A nominal distance such as 250 feet should not be treated as a universal APsystems limit.

Environmental factor Typical effect Useful comparison Corrective approach
Metal roof or radiant barrier High RF attenuation 2.4 GHz path becomes weaker Installer antenna or ECU relocation
Concrete or masonry wall Moderate to high attenuation More loss than drywall Shorter path or external antenna
ECU inside metal cabinet Severe shielding May block roof packets Remove obstruction if permitted
Heavy rain or standing water Temporary signal and production changes Often weather-correlated Observe clear-day behavior
ECU moved from original location New path geometry Distance may increase Restore documented position

An external antenna kit may help an approved installation, but routing antenna cable through an attic or changing equipment placement is an installer task. Antenna modifications must comply with the ECU manual and local electrical requirements.

Do Zigbee, PLC, and Internet Problems Behave Differently?

Zigbee or another local wireless link fails between rooftop microinverters and the ECU, while Wi-Fi or Ethernet fails between the ECU and the router. Legacy PLC systems use the electrical wiring path and can respond differently to circuit topology, filters, noise, and phase arrangements.

The distinction prevents wasted troubleshooting. Replacing a router cannot repair a broken rooftop communication path, and relocating an ECU cannot fix a disconnected Ethernet cable.

Communication segment Technology examples Affected scope Best diagnostic
Microinverter to ECU Zigbee, approved wireless link One branch or whole array ECU local device discovery
Legacy inverter to ECU PLC or power-line method Circuit-dependent groups Installer PLC and phase test
ECU to router Wi-Fi or Ethernet Entire monitoring system Router, cable, IP and signal check
Router to cloud Broadband, DNS, service access EMA app and uploads Internet test and service status
Cloud to phone EMA account and app One user or all users Second device and account test

The APsystems ECU can be a single monitoring point of failure even when the rooftop equipment remains operational. That limitation is especially important for systems with no independent production meter or third-party monitoring channel.

What Are the Main APsystems ECU Options?

APsystems ECU families differ in supported inverter generations, communications, monitoring functions, device capacity, and regional availability. Product names alone do not establish the maximum number of microinverters or the correct replacement, so confirm compatibility with APsystems documentation.

ECU family or example Common role Communication or function Replacement decision
ECU-B Smaller residential systems Model-specific local monitoring Verify exact inverter compatibility
ECU-R Residential monitoring gateway Commonly associated with wireless inverter links Match firmware and regional model
ECU-C Advanced or commercial applications May include control or CT functions Confirm CT, phase and export requirements
Newer regional ECU variants Current installations May use revised networking and firmware Use current APsystems compatibility list

Retail prices vary by country, distributor, warranty status, and whether commissioning is included. A typical replacement gateway may cost roughly $150-$600 before labor, but a quoted installer price can be higher after diagnosis, travel, configuration, and electrical work.

Replacing an ECU is not the first response to NC messages. The installer should prove that the gateway has power, has a functioning network interface, and fails to discover known-good microinverters before recommending replacement.

How Long Does Recovery Take and What Can It Cost?

A simple router or ECU restart may restore new data within 5-30 minutes, while a mapping correction or firmware action can take 30-90 minutes. Roof access, replacement equipment, utility coordination, and historical-data reconstruction can extend the repair to several days.

Repair scenario Typical time Typical homeowner cost Main uncertainty
Router or ECU restart 10-30 minutes $0 Network state and cloud delay
UID or panel-map correction 30-90 minutes $0-$250 Installer access and account permissions
ECU replacement 1-3 hours $150-$600 equipment Compatibility and commissioning
One microinverter replacement 2-5 hours $300-$900 installed Roof access, warranty and labor
RF or antenna correction 1-4 hours $150-$800 Building construction and cable route

These are typical planning ranges, not APsystems price schedules. Regional labor rates and warranty coverage dominate the final invoice.

EMA history may not backfill every missing interval. The ECU or microinverter may retain limited records, but homeowners should not assume that several days of unavailable cloud data will be reconstructed perfectly after communication returns. Utility meter records remain important for billing and production disputes.

What Should Homeowners Never Do?

Homeowners should never unplug rooftop DC connectors, remove microinverter covers, walk on modules, or bypass rapid-shutdown and AC isolation procedures to investigate a reporting error. A microinverter’s lower DC voltage architecture reduces certain string-system hazards, but rooftop equipment can still present shock, arc, fall, thermal, and weather risks.

Avoid these specific mistakes:

  1. Deleting offline devices from EMA: Preserve the original system map and historical association.
  2. Using an extension cord or smart strip for the ECU: Use the documented permanent outlet and avoid unapproved power filtering.
  3. Resetting a repeatedly tripping breaker: A recurring trip requires electrical diagnosis.
  4. Assuming a red LED has one universal meaning: Match the model manual.
  5. Calling a production outage a cloud outage: Confirm daytime energy flow independently.
  6. Replacing hardware before recording evidence: Photos, timestamps, serial numbers, and weather patterns reduce repeat visits.

The safest homeowner task ends at labeled breakers, network equipment, the ECU exterior, and app records. Roof-level electrical diagnosis belongs to a qualified solar professional.

When Should an Installer Visit?

Request an installer when all microinverters remain NC after a documented ECU restart, the solar breaker will not stay on, one unit remains absent for more than a clear daylight cycle, or the app shows zero production and the utility meter confirms no export.

An installer should perform local ECU diagnostics rather than relying only on screenshots from the cloud. The visit should include system-map verification, AC voltage and frequency checks, inverter event logs, communication quality, branch-circuit inspection, DC input assessment where appropriate, and firmware compatibility.

Evidence to Send Before the Visit

Evidence Example detail Why it helps
ECU model ECU-R, regional suffix, serial label Selects correct manual and firmware
Affected devices UID ending 4821 and 4822 Separates local from global failure
Last report 14:05 local time, Tuesday Correlates outage onset
ECU indicators Power green, network off Narrows the failed segment
Breaker condition PV breaker tripped once Identifies possible AC event
Weather and work Heavy rain or panel replacement Reveals environmental trigger

Warranty decisions often depend on serial numbers, commissioning dates, installer records, and proof of proper installation. Keep those records before changing the system configuration.

The Bottom Line

APsystems microinverter not reporting data is primarily a monitoring diagnosis, not an automatic declaration that the solar array has stopped producing. Start with scope, ECU power, internet access, one controlled reboot, and the solar AC breaker; then use a qualified installer for UID mapping, RF, PLC, electrical, firmware, or rooftop hardware testing.

The highest-value distinction is whether all devices or only one device is missing. A whole-array outage directs attention to the ECU, network, cloud path, or AC supply, while a partial outage points toward local communication, mapping, wiring, environmental obstruction, or microinverter hardware. Preserve the system map and do not dismantle rooftop equipment.

FAQ

Does APsystems EMA show production if the internet fails?

APsystems microinverters can continue operating when the home internet connection fails, but the EMA cloud cannot receive current records until the ECU reconnects. Depending on the ECU and local storage behavior, some records may upload later, while other intervals may remain incomplete. Check the utility meter or an independent energy monitor during daylight.

How can I tell whether the ECU or a microinverter failed?

A powered ECU with a normal network connection but no discovered inverters suggests a local communication, configuration, or ECU-radio problem. If the ECU sees most devices and one remains absent, suspect that unit, its wiring, its UID, or its local RF conditions. An installer’s local diagnostic report is more reliable than the phone app alone.

Will cloudy weather cause an NC message?

Clouds can reduce or interrupt production reports when panel voltage falls below the microinverter’s operating threshold, but persistent NC messages during clear daylight require further investigation. Rain and moisture can also expose insulation or enclosure problems. Compare the same devices on a clear day before concluding that weather alone caused the outage.

Can I replace an ECU-R with an ECU-B?

An ECU-R should not be replaced with an ECU-B based only on price or physical appearance. Compatibility depends on microinverter generation, supported device count, communication method, firmware, region, and required monitoring functions. Have APsystems or the installer confirm the replacement model before purchase, then commission the gateway using the original system map.

Does a missing panel in EMA prove that the panel is bad?

A missing panel in EMA does not prove that the solar module is defective. The same display can result from an incorrect UID, communication loss, AC interruption, ECU discovery failure, or a failed microinverter. Production testing must examine electrical measurements and event logs, not only the panel icon shown in the app.
